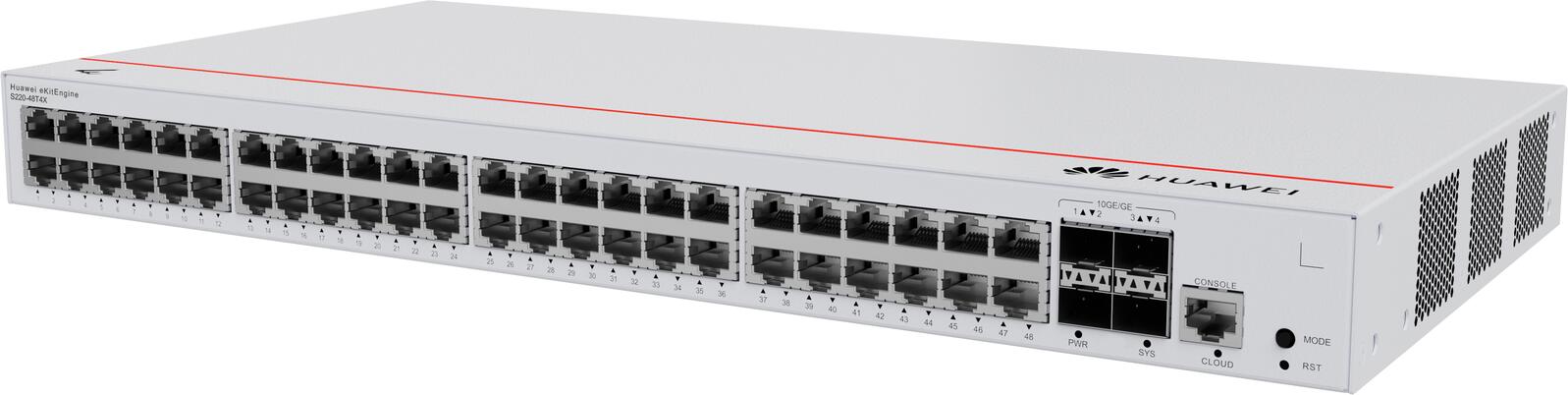

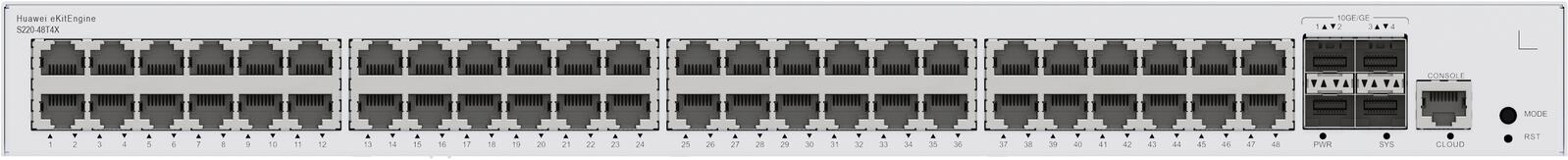

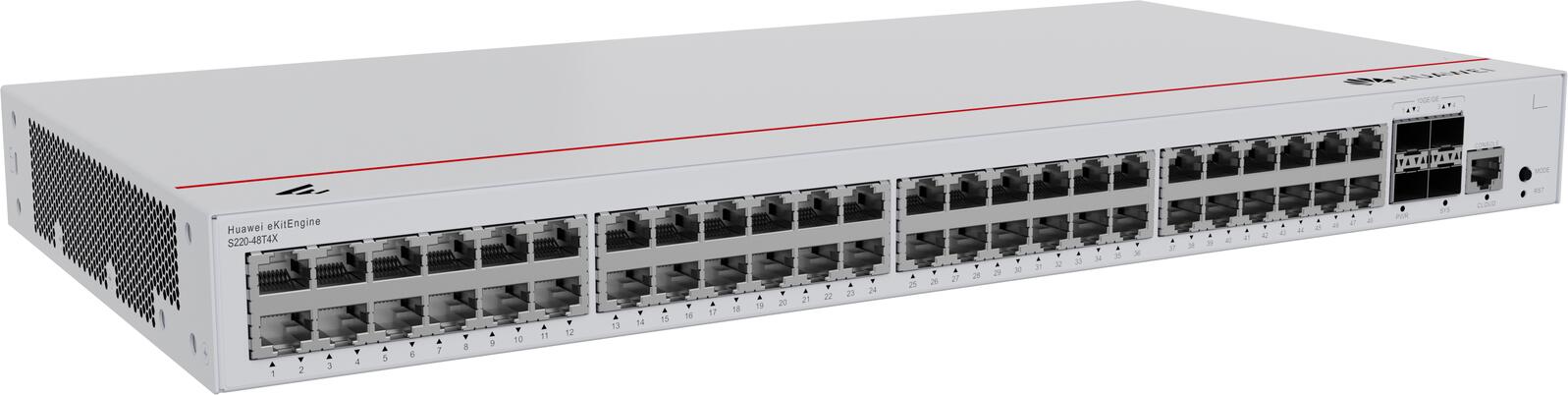

Huawei eKit Switch S220-48T4X 24x 1GbE RJ45 + 4x 10GbE SFP managed L2 98012377

Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Chassis height [U] 1

Installation type Rack mounting,Desk mounting,Wall mounting

Chassis material Metal

Weight without packaging [kg(lb)] 2.71 (5.97)

Weight with packaging [kg(lb)] 3.59 (7.91)

Typical power consumption [W] 36.95

Maximum power consumption [W] 44.3

Static power consumption [W] 18.8

100% power consumption [W] 36.95

Number of fans modules 1

Maximum number of physical ports on the entire device 52

Maximum number of GE ports 52

Maximum number of FE ports 48

Uplink ports 4 x 10GE SFP+ ports

Downlink ports 48 x 10/100/1000BASE-T ports

Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)

Power supply mode AC built-in

Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz

Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Maximum input current [A] 1.6 A

Console port RJ45

Service port surge protection [kV] Common mode: ±7 kV

Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV

Types of fans Built-in

Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction Air intake from left and air exhaust from right

Certification EMC certification Safety certification Manufacturing certification
